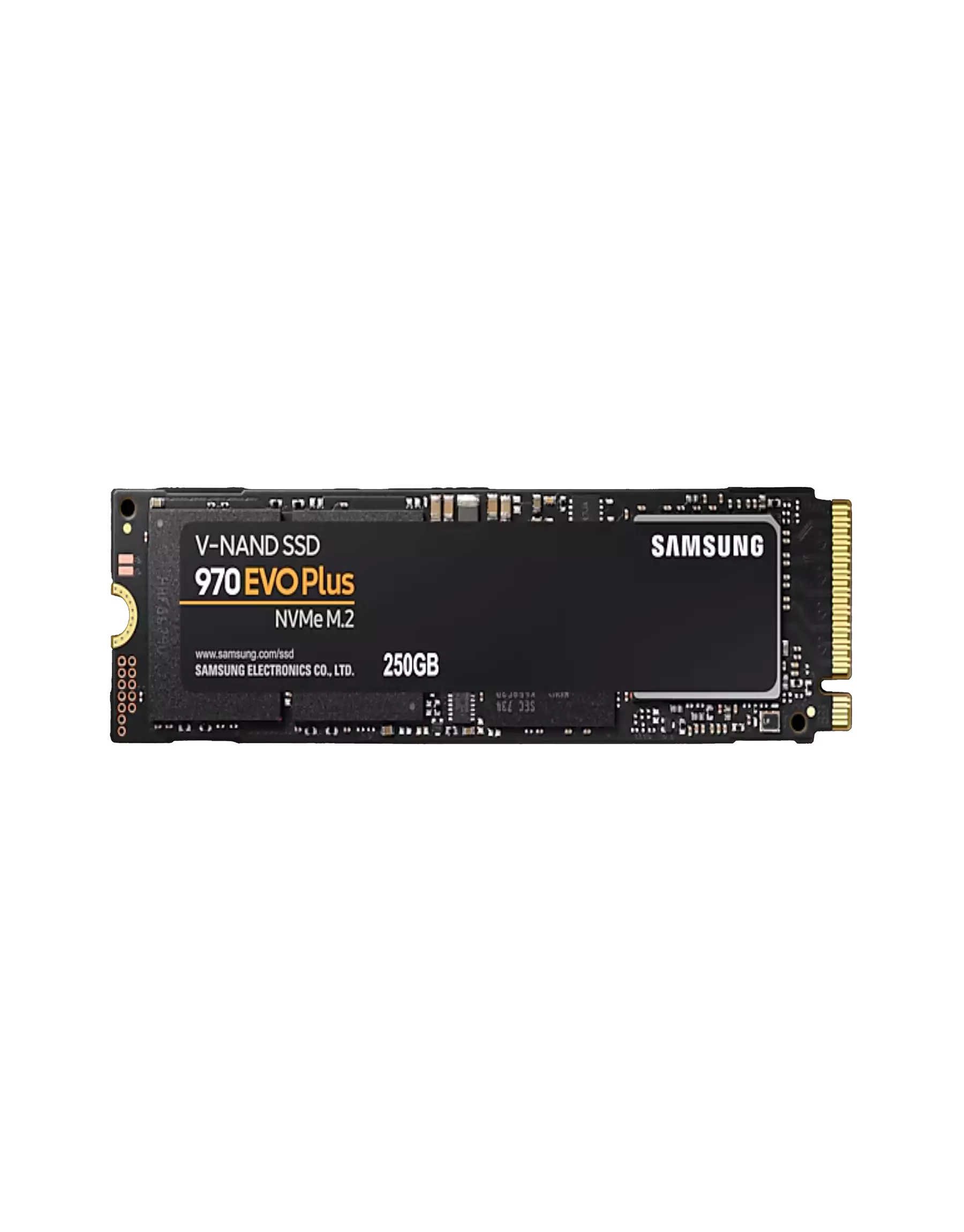

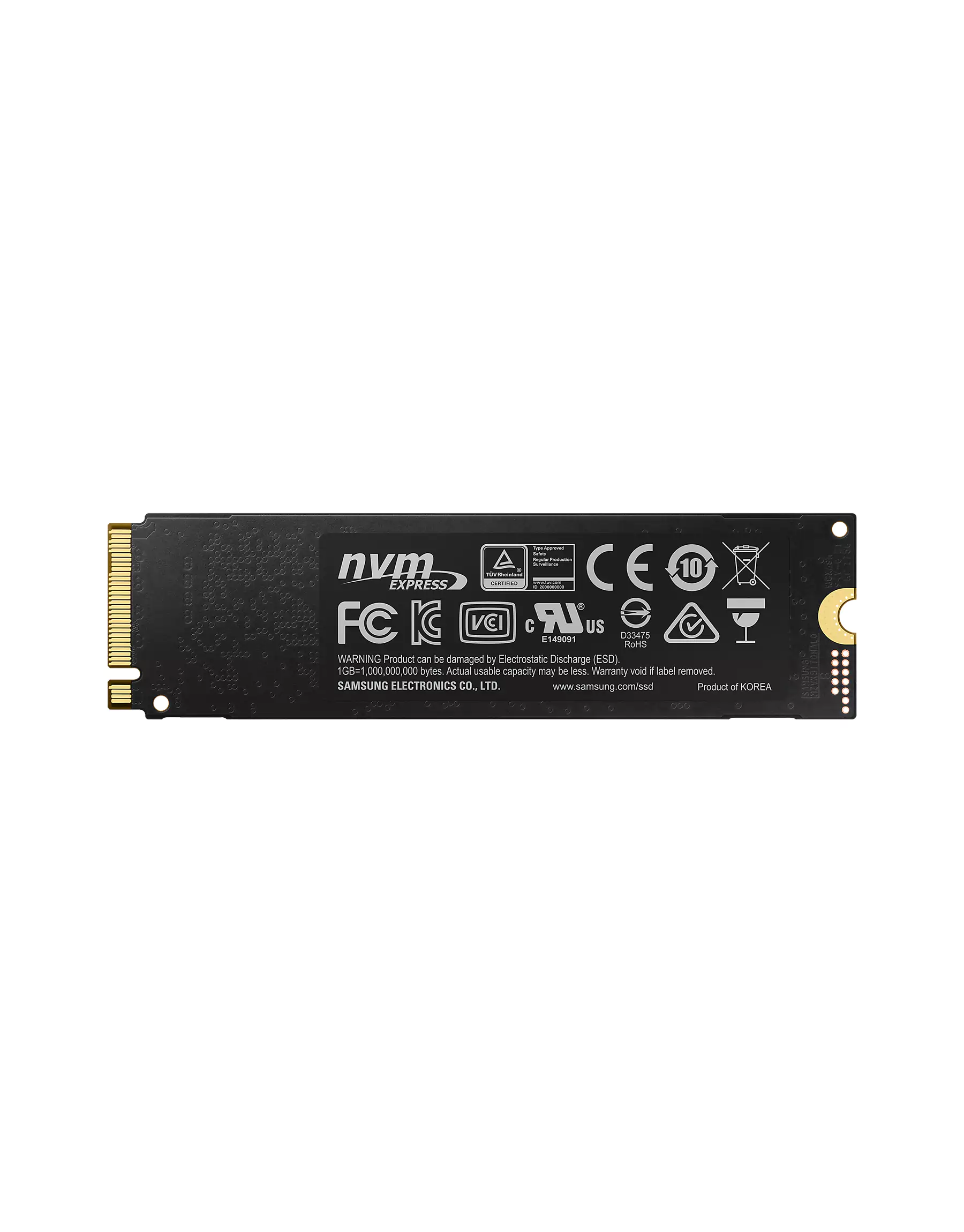

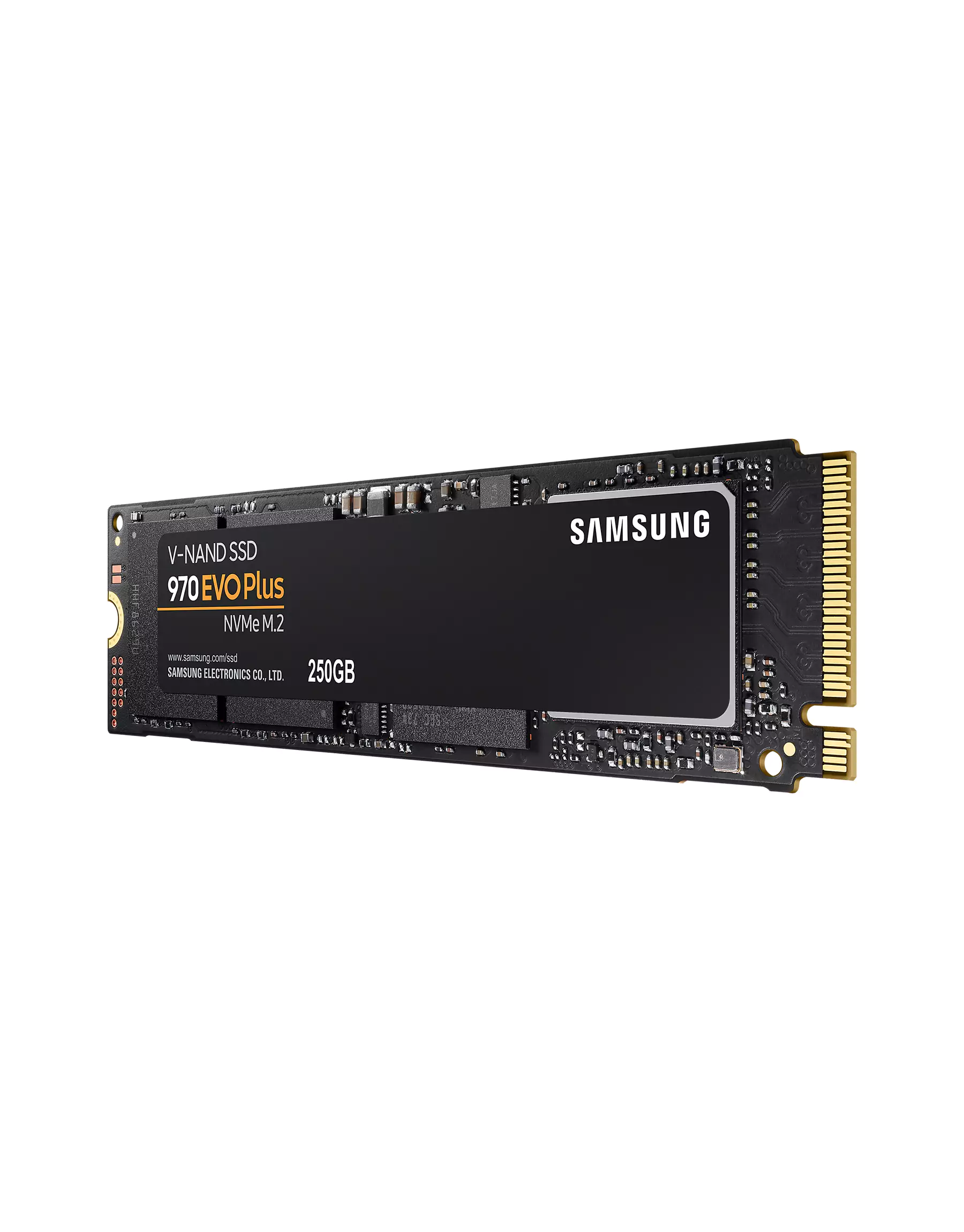

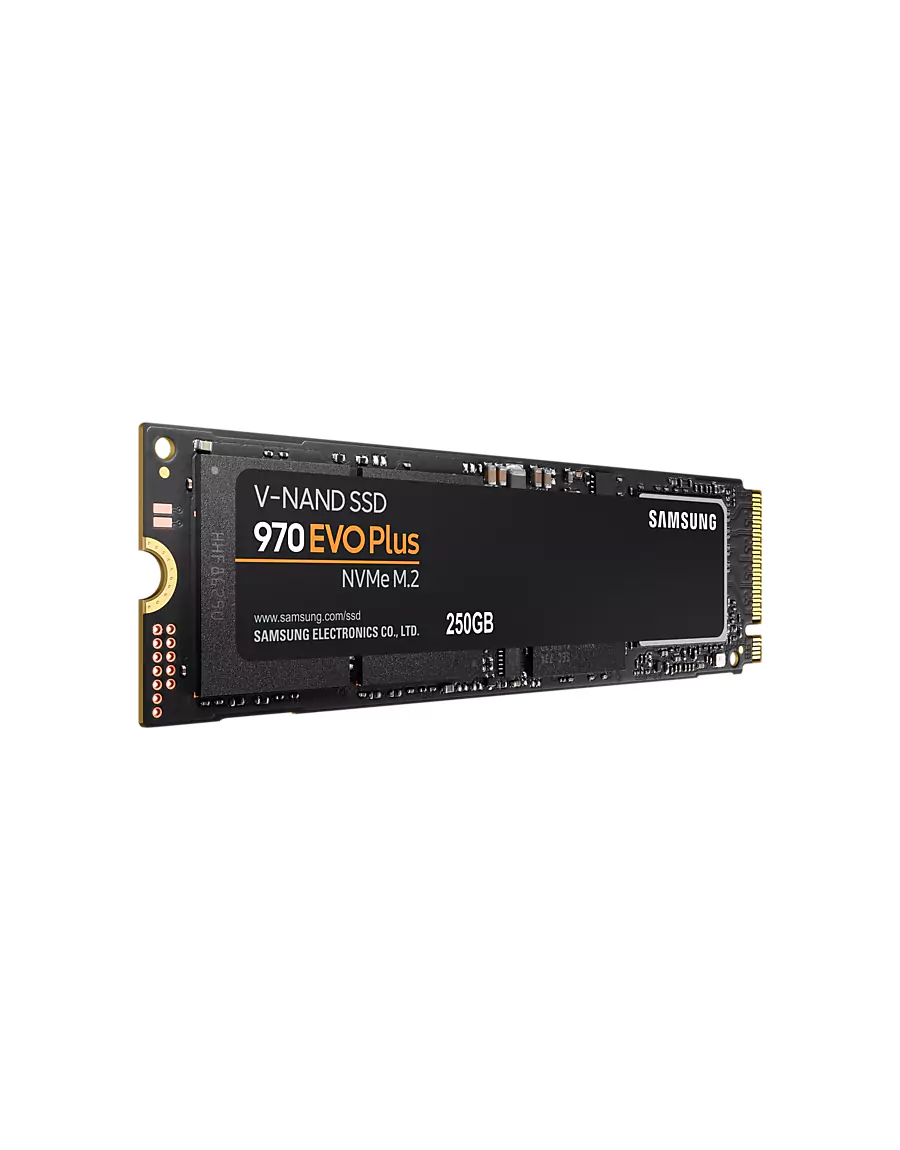

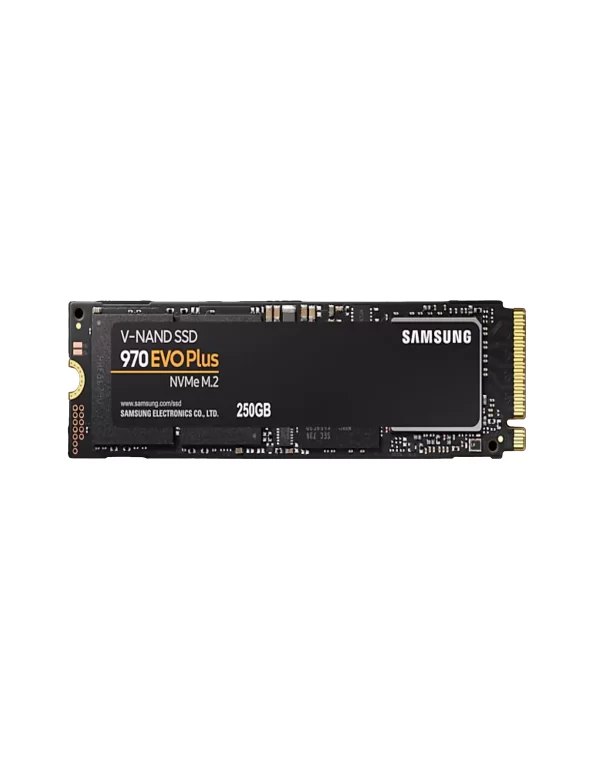

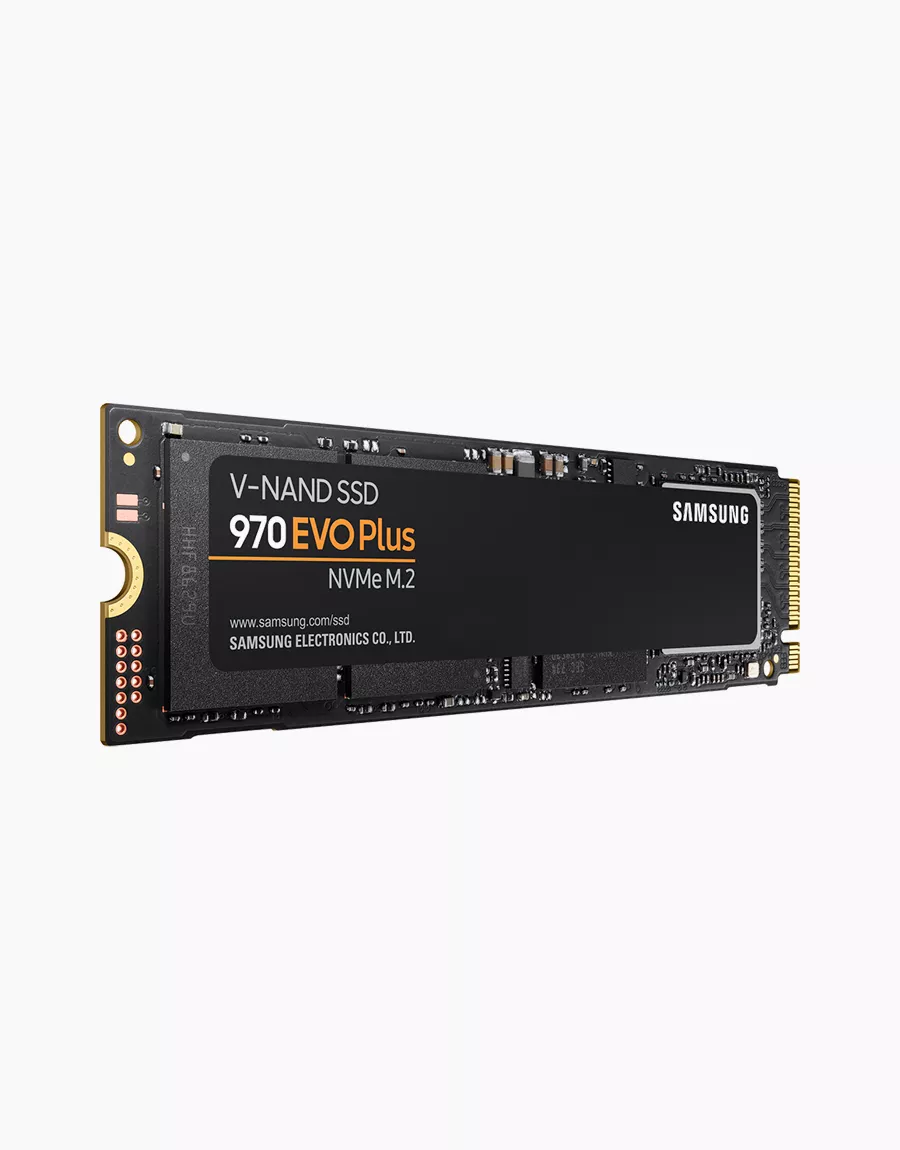

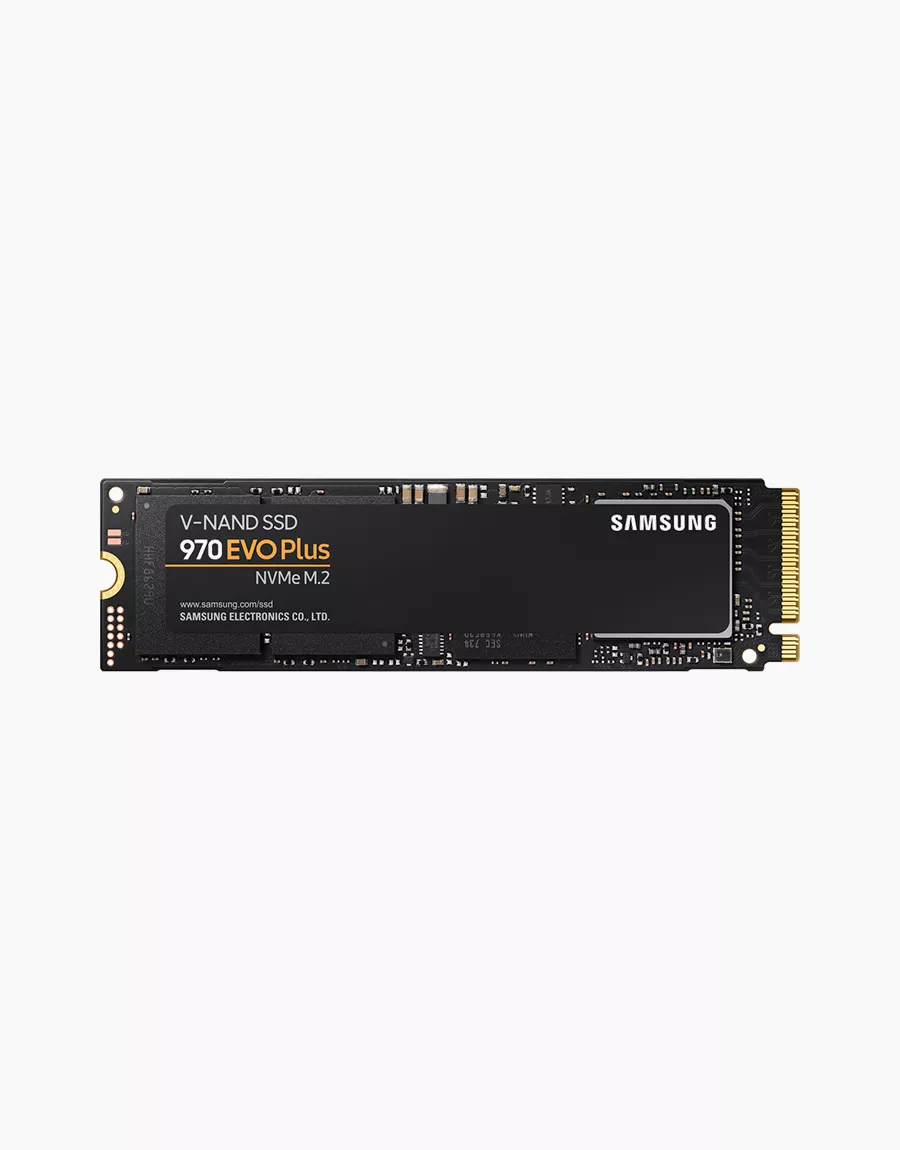

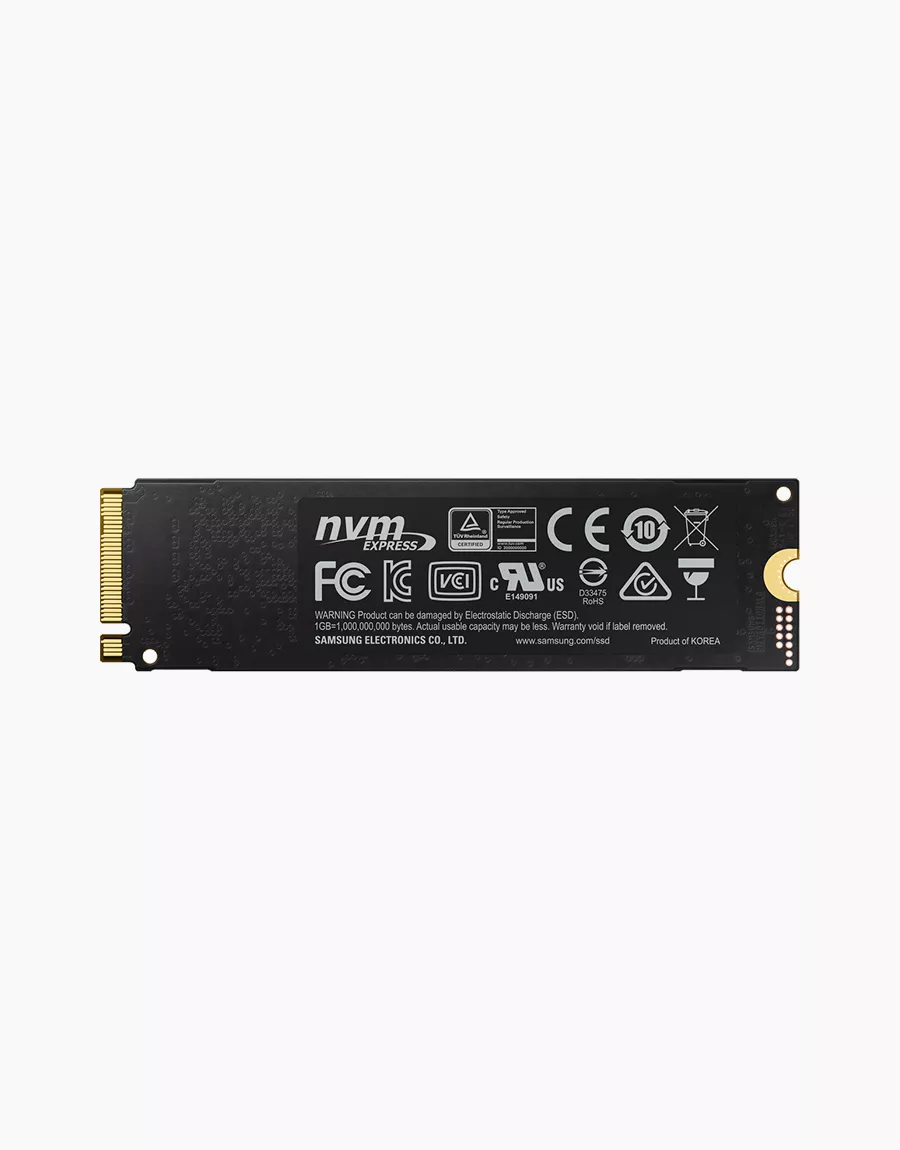

Samsung 970 EVO Plus NVMe M.2 SSD 250GB (MZ-V7S250BW)
5 sold in last 30 hours
- Capacity: 250 GB
- Interface: PCIe Gen 3.0
- Form Factor: M.2 (2280)
- Read Speed: Up to 3,500 MB/s
- Write Speed: Up to 2,300 MB/s
- Warranty: 1 Year
Estimated Delivery: Wed, Apr 30 – Thu, May 01
EGP 2.555
Samsung 970 EVO Plus
General Features
| Feature | Specification |
|---|---|
| Application | Client PCs |
| Capacity | 250GB |
| Form Factor | M.2 (2280) |
| Interface | PCIe Gen 3.0 x 4, NVMe 1.3 |
| Dimension (WxHxD) | 80.15 x 22.15 x 2.38 (mm) |
| Weight | Max 8.0 g |
| Storage Memory | Samsung V-NAND 3-bit MLC |
| Controller | Samsung in-house controller |
| Cache Memory | Samsung 512MB Low Power DDR4 SDRAM |
Special Features
| Feature | Specification |
|---|---|
| TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| GC (Garbage Collection) | Auto Garbage Collection Algorithm |
| Encryption Support | AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 (Encrypted drive) |
| WWN Support | Not supported |
| Device Sleep Mode Support | Yes |
Performance
| Feature | Specification |
|---|---|
| Sequential Read | Up to 3,500 MB/s * Performance may vary based on system hardware & configuration |
| Sequential Write | Up to 2,300 MB/s * Performance may vary based on system hardware & configuration |
| Random Read (4KB, QD32) | Up to 250,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write (4KB, QD32) | Up to 550,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Read (4KB, QD1) | Up to 17,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write (4KB, QD1) | Up to 60,000 IOPS * Performance may vary based on system hardware & configuration |
Environment
| Feature | Specification |
|---|---|
| Average Power Consumption (system level) | * Average: 5.8 W * Maximum: 9 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration |
| Power consumption (Idle) | Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration |
| Allowable Voltage | 3.3 V ± 5 % |
| Reliability (MTBF) | 1.5 Million Hours |
| Operating Temperature | 0 - 70 ℃ |
| Shock | 1,500 G & 0.5 ms (Half sine) |
Accessories
| Feature | Specification |
|---|---|
| Installation Kit | Not Available |
Software
| Feature | Specification |
|---|---|
| Management SW | Magician Software for SSD management |
Warranty
| Feature | Specification |
|---|---|
| Product | 5-Year Limited Warranty or 300 TBW Limited Warranty |
